Lithium Chargers - Suitable for Mobility Scooters

ALSO AVAILABLE Models :
5AMP       8AMP       13AMP

PREMIUM LITHIUM BATTERY CHARGER / ALSO SLA COMPATIBLE -
warranty 5 year
Phone is APP AVAILABLE

USER GUIDE

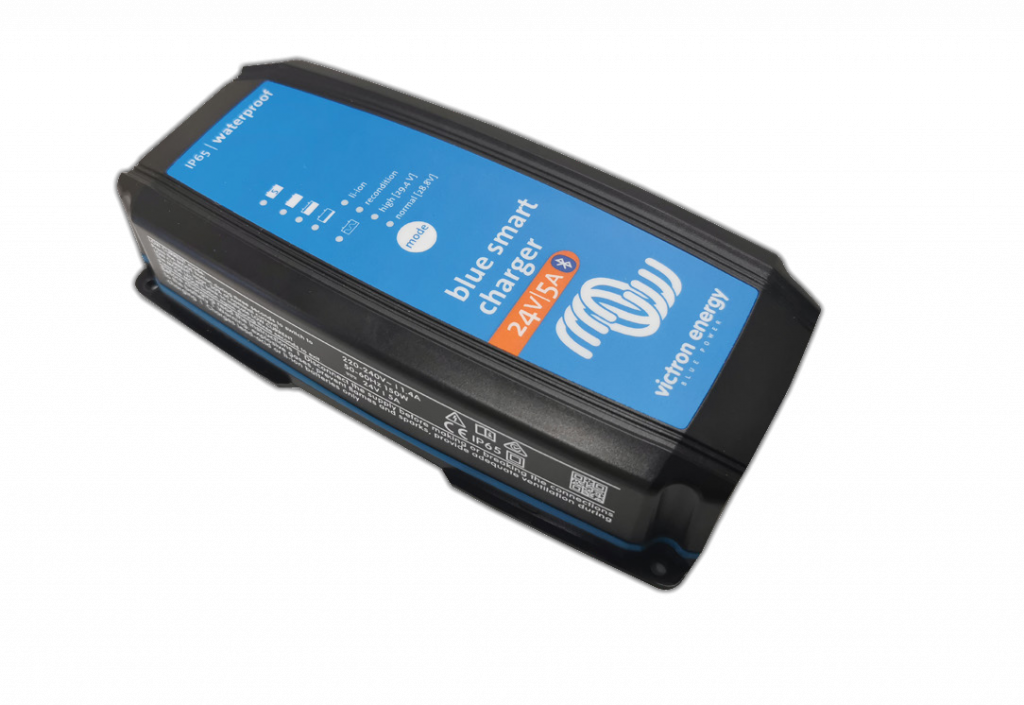

The Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP65 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.

  1. Water, dust and chemical resistant
  2. Seven step smart charge algorithm
  3. Recovery of fully discharged ‘dead’ batteries
  4. Automatic power supply function
  5. Severe cold performance: down to -30°C
  6. Several other battery life enhancing features
  7. Low power mode to charge smaller batteries
  8. Li-ion battery mode
  9. Setup and configure, readout of voltage and current by Bluetooth Smart

Storage mode: less corrosion of the positive plates
Even the lower float charge voltage that follows the absorption period will
cause grid corrosion. It is therefore essential to reduce the charge voltage
even further when the battery remains connected to the charger during
more than 48 hours.
Temperature compensated charging:
The optimal charge voltage of a lead-acid battery varies inversely with
temperature. The Blue Smart IP65 Charger measures ambient temperature
during the test phase and compensates for temperature during the charge
process. The temperature is measured again when the charger is in low
current mode during float or storage. Special settings for a cold or hot
environment are therefore not needed.
Li-ion battery mode:
The Blue Smart IP65 Charger uses a specific charging algorithm for Li-ion
(LiFePO₄) batteries, with automatic Li-ion under voltage protection reset.

Battery-connection Black and red cable of 1,5 meter
230V AC-connection 1.5m cable with CEE 7/16 or
AS/NZS 3112 plug
Cable of 1,5 meter with CE 7/16, CE 7/17, BS 1363 plug (UK)
or AS/NZS 3112 plug

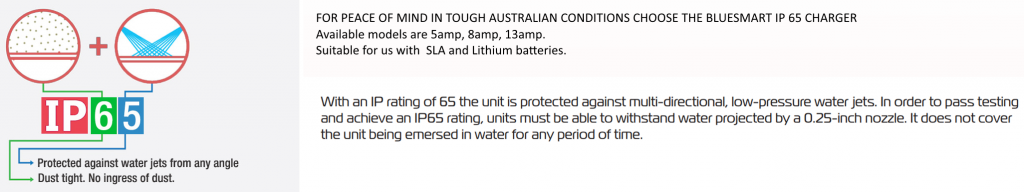

Protection category IP65 (splash and dust proof)
Weight 0,4 kg IP65 12 V 25 A 24 V 13 A: 1,9 kg
Other: 0,9 kg
Dimensions (h x w x d) 38 x 64 x 153 mm
IP65s 12 V 4/5 A : 45 x 81 x 182 mm
IP65 12 V 7 A 24 V 5 A: 47 x 95 x 190 mm
IP65 12 V 10/15 A 24 V 8 A: 60 x 105 x 190 mm
IP65 12 V 25 A 24 V 13 A: 75 x 140 x 240 mm

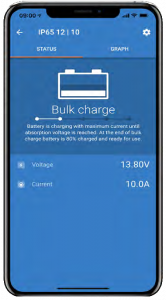

The VictronConnect app

Setup, readout and configure your Blue
Smart IP65 Charger via your smartphone.

You can display the status of your charger and
battery and even control the functions of your
charger using the VictronConnect app. On your
screen the readout of voltage and current is
default available.
Download your app for iOS and Android

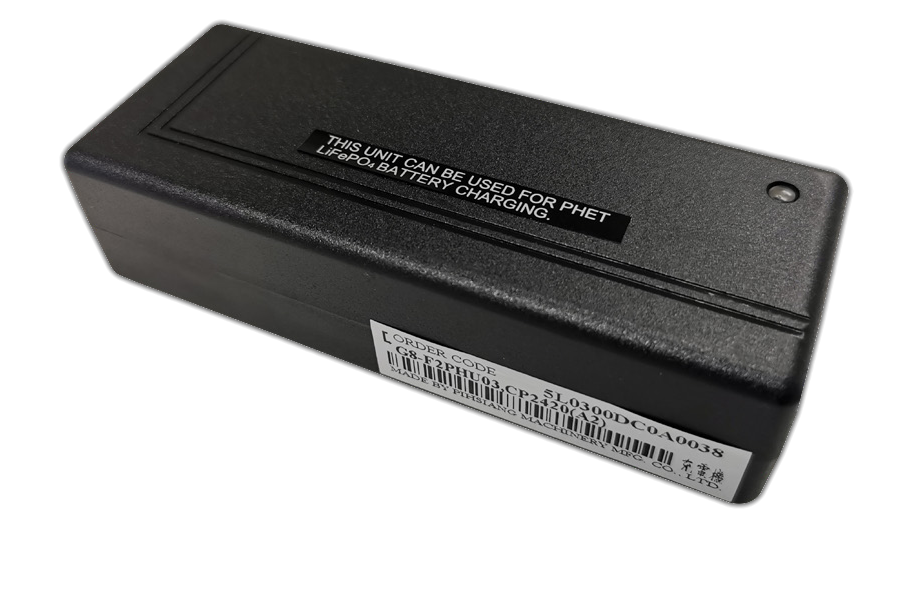

STANDARD TE-CH2L
2AMP LITHIUM
BATTERIES CHARGER
Warranty: 1 year - LITHIUM ONLY

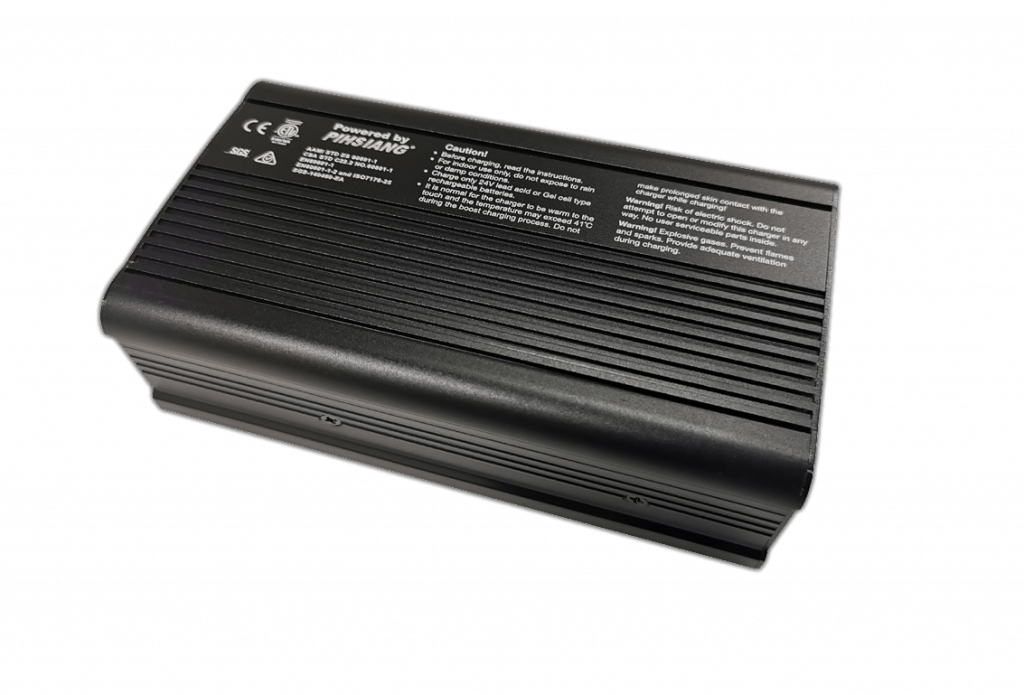

Standard SLA and Gel Chargers

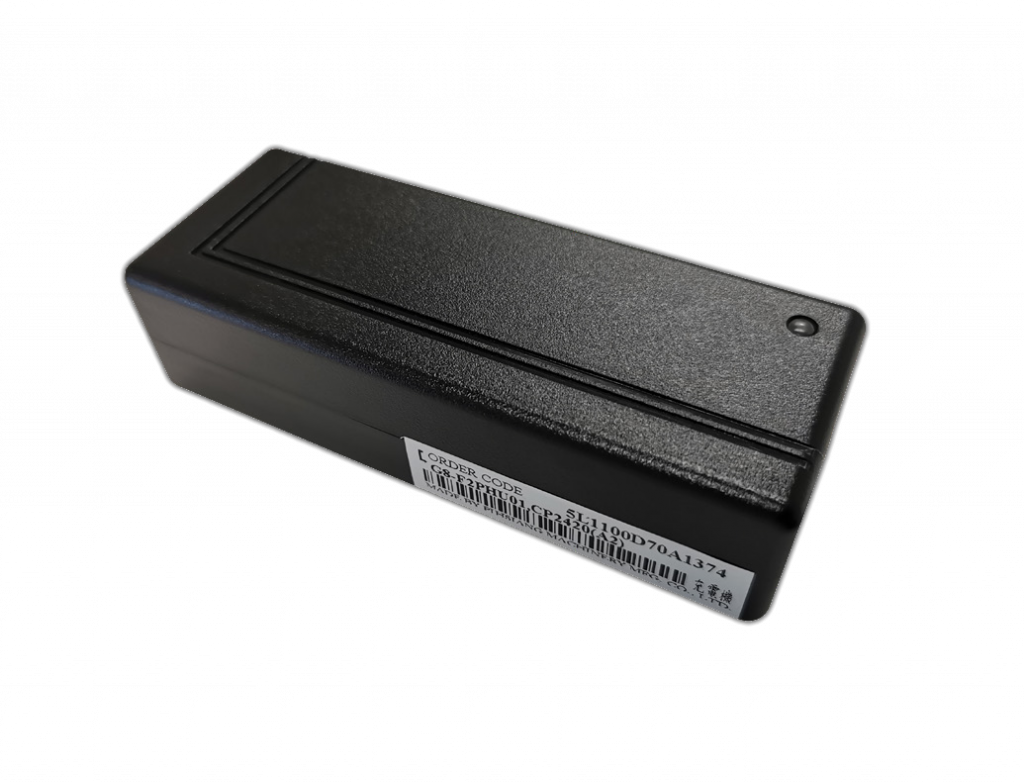

STANDARD TE-CH2
2AMP CHARGER
SLA ONLY - Warranty: 1 year

STANDARD TE-CH5
5AMP CHARGER
SLA ONLY - Warranty: 1 year

STANDARD TE-CH8
8AMP CHARGER
SLA ONLY - Warranty: 1 year
